Gorbel AJ200  500 lbs Capacity Wall Mounted Articulating Jib Crane

Gorbel Model AJ200- 500 lb. Capacity Wall Mounted Articulating Jib Crane, 8 - 16 ft. Span

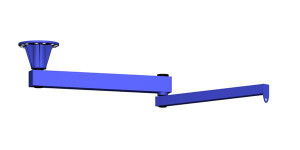

Gorbel AJ200 Wall/Column Mounted Articulating Jib Crane

Product Description

Gorbel® Articulating Jib Cranes can position loads in places you cannot reach with traditional jibs. They provide easy rotation and consistent responsiveness when positioning loads throughout the crane’s coverage area. Gorbel® Wall/Column Mounted Articulating Jibs can handle up to 200° rotation for the primary boom and up to 360° for the secondary boom. The AJ200 is perfect for applications that require maneuvering under obstructions or around obstacles and there is an adequate wall/column to support the crane.

Product Dimensions

Capacity
(lbs)
Span
A (ft.)
Model
Number
Weight
(lbs.)
K
(in.)
T
(in.)
H
(in.)
P
(in.)
B
(in.)
Fittiing
Type
Thrush and
Pull (lbs.)
500 8 AJ200-B1-500-8 368 33 3-15/16 19-1/8 1-3/4 36 B1 2140
10 AJ200-B1-500-10 425 45 48 2040
12 AJ200-B1-500-12 555 57 4-11/16 19-5/16 1-3/8 60 2430
14 AJ200-B1-500-14 514 72 1380
16 AJ200-B2-500-16 999 81 4-15/16 23 1-11/16 B2 3090

Gorbel AJ200-Wall_Column Mounted Jib Crane, 8 - 16

Product Features

  • Easy Movement-Traditional jib cranes can be difficult to rotate when the load is on the inner half of the boom. The articulating jibs are easier to rotate in close to the free standing mast or building column.
  • Precise Load Positioning-Gorbel® Articulating Jib Cranes are A Class Above™ when it comes to positioning and spotting loads around an obstruction, through an open doorway, or rotating in close to the free standing mast or building column.
  • Wide Variety of Spans and Capacities-Gorbel® Articulating Jib Cranes are available as standard products in capacities up to 2000 lbs. and spans up to 16’ without the extra lead time and costs associated with customization.

Downloads and Other Documents

Span
Freight
This product requires “special handling” and requires a freight surcharge that is included in the cost of the product.
Special Handling - Freight Surcharge
Summary
Base Price: $3,517.00 Customized Price: $4,017.00
  • 8 ft. Span #-8
  • Special Handling - Freight Surcharge
