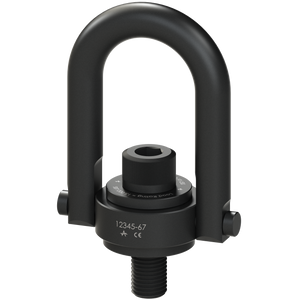

ADB Safety Engineered 8,000 lb. Black Oxide Hoist Ring, 23101
$251.03
The ADB Safety Engineered 8,000 lb. Hoist Ring, part 23101, is a swivel hoist ring with a 7/8-9 mounting thread and a black oxide finish. The bail swivels 360° and pivots 180° under load, letting the ring align with the direction of pull rather than staying in one fixed position, and it holds its full 8,000 lb. rating at any angle from 0° to 90° off the bolt axis.
Key specifications
- Capacity: 8,000 lb.
- Thread size: 7/8-9
- Thread projection: 1.04″
- Movement: 360° swivel, 180° pivot
- Installation torque: 160 ft-lb., applied dry
If you need more clearance around the mounting hole, the Long Bar version of this ring is ADB 23328.
Questions about this product? Call (800) 733-2231 and we'll get you connected with someone who can help.
- Material: High strength 4140 alloy steel
- Design Factor: 5:1, Magnetic Particle Inspected Per ASTM E1444, Hoist Rings retain the same rated load from 0 to 90 degrees from the bolt axis, Standard tolerance +- .030 inch unless otherwise specified.
- Finish: Black Oxide Finish for corrosion resistance, Also available in Cadmium, Titanium-Cadmium, Nickel and other plating.
- Range of Movement: Swivel 360°, Pivot 180° Under Load
- 200% Proof Load Tested
