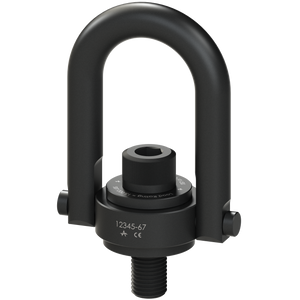

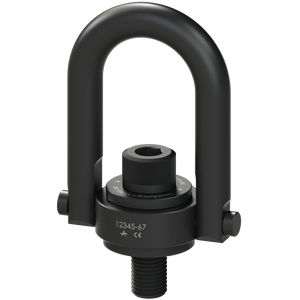

ADB Safety Engineered 8,000 lb. Long Bar Black Oxide Hoist Ring, 23328
$266.45
The ADB Safety Engineered 8,000 lb. Long Bar Hoist Ring, part 23328, is a swivel hoist ring with a 7/8-9 mounting thread and a black oxide finish. The bail swivels 360° and pivots 180° under load, letting the ring align with the direction of pull rather than staying in one fixed position, and it holds its full 8,000 lb. rating at any angle from 0° to 90° off the bolt axis.
Key specifications
- Capacity: 8,000 lb.
- Thread size: 7/8-9
- Thread projection: 1.04″
- Movement: 360° swivel, 180° pivot
- Installation torque: 160 ft-lb., applied dry
Need a shorter body? The standard-length version of this ring is ADB 23101.
Questions about this product? Call (800) 733-2231 and we'll get you connected with someone who can help.
| Part Number | Rated Load | A | B | C | D | E +/- .12 | F | G | H | J | K | L | M | TL* (ft - lbs.) | Weight |
| 23327 | 8000 lb. | 1.4 | 4.80 | 1.71 | 1" | 1.04 | 8.11 | 7/8 - 9 | 5.14 | 3.00 | 2.37 | .24 | 4.52 | 160 | 7 lb. |
- Material: High strength 4140 alloy steel
- Design Factor: 5:1, Magnetic Particle Inspected Per ASTM E1444, Hoist Rings retain the same rated load from 0 to 90 degrees from the bolt axis, Standard tolerance +- .030 inch unless otherwise specified.
- Finish: Black Oxide Finish for corrosion resistance, Also available in Cadmium, Titanium-Cadmium, Nickel and other plating.
- Range of Movement: Swivel 360°, Pivot 180° Under Load
- 200% Proof Load Tested
