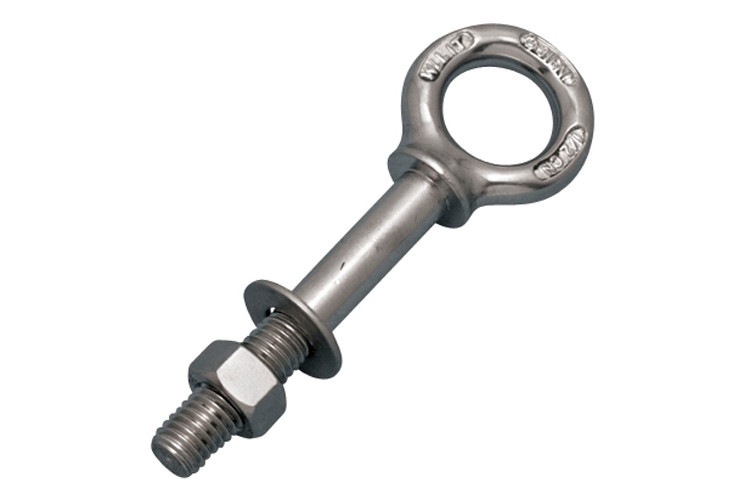

Suncor - 3/8" x 2-1/2" Shoulder Eye Bolt 316-NM Stainless Steel
$10.82
(No reviews yet)
Write a Review
Suncor Stainless
Suncor - 3/8" x 2-1/2" Shoulder Eye Bolt 316-NM Stainless Steel
The Shoulder Eye Bolt includes one nut and one washer and is UNC thread. It is available in sizes ranging from 1/4 ³ to 1 ³ to fit every project. This eye bolt is made from grade 316-NM stainless steel for corrosion resistance and durability, making it perfect for marine and industrial applications.
| Model Number | A - Size(in.) | B (in.) | C (in.) | D (in.) | E (in.) | X (in.) | Y (in.) | Z (in.) | WLL (lb.) | Weight (lb.) |
| S0314-1006 | 3/8 | 0.75 | 2.50 | 1.50 | 0.66 | 1.40 | 4.02 | 0.74 | 1200 | 0.19 |
- Thread Type: UNC
- Specification: ASME B30.26
