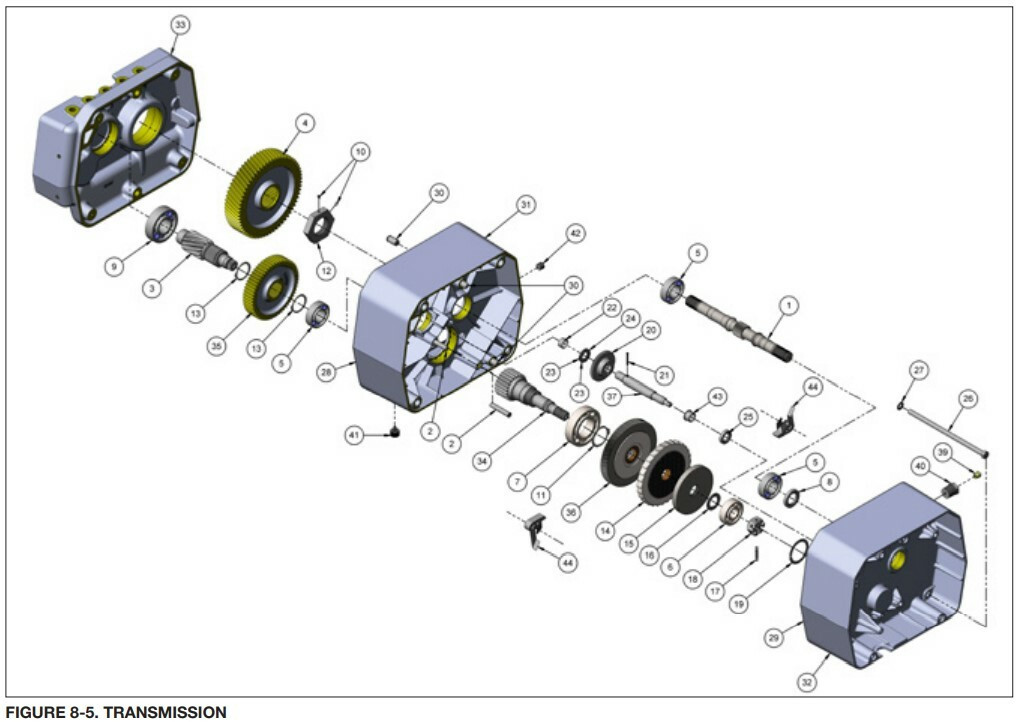

Transmission (Figure 8-5)

Transmission (Figure 8-5)
Coffing Hoist Parts,Coffing EC3 (Large Frame) Parts,Transmission (Figure 8-5)
  • Coffing 14 > No longer sold separately now a part of EC3 Seal Kit, part #14J12 > 1 29 > No longer sold separately now a part of EC3 Seal Kit, part #14J12 > 1 29 > No longer sold separately now a part of Seal Kit, part #14J12 > 1
    Coffing Transmission Cover Gasket 560J6 (2675)
    SKU: DN560J6

    Coffing Transmission Cover Gasket 560J6

    Call for Price
    Adding to cart… The item has been added
  • Coffing 25 > No longer sold separately now a part of EC3 Seal Kit, part #14J12> 1 28 > No longer sold separately now a part of EC3 Seal Kit, part #14J12 > 1 24 > > 1 28 > > 1
    Coffing Transmission Adapter Gasket 560K15 (2676)
    SKU: DN560K15

    Coffing Transmission Adapter Gasket 560K15

    Call for Price
    Adding to cart… The item has been added
  • 0 > All Models > 1 39 > Pressure Relief Fitting > 1 5 > Pressure Relief Plug > 1 18 > Pressure Relief Plug > 1 6 > All Models > 1 6 > > 1
    Image coming soon
    SKU: DNSK1912-21W

    Pressure Relief Fitting SK1912-21W

    $37.72
    Adding to cart… The item has been added
  • Little Mule 1 > High Speed Pinion > 1
    Image coming soon
    SKU: DN400J7

    Coffing High Speed Pinion 400J7 (2652)

    $551.84
    Adding to cart… The item has been added
  • 31 > All Models > 2 2 > Dowel Pin > 2 10 > Dowel Pin - Ratchet Ring > 2
    Image coming soon
    SKU: DNH-5493

    Dowel Pin, Ratchet Ring (2570)

    $4.90
    Adding to cart… The item has been added
  • 17 > Drive-Lok Pin > 1 8 > 3/16 X 1 1/4, > 1 17 > > 1
    Drive-Lok Pin H5219
    SKU: DNH5219

    Drive-Lok Pin H5219

    $4.26
    Adding to cart… The item has been added
  • 34 > Intermediate Pinion (Model EC6010) > 1
    Image coming soon
    SKU: DN402J8

    Intermediate Pinion (2655)

    $909.50
    Adding to cart… The item has been added
  • 36 > Load Equalizer Assembly (Models EC2032. EC4016, EC6010, EC8008 & EC10005) > 1
    Load Equalizer Assembly (2682)
    SKU: DN591JG13

    Load Equalizer Assembly (2682)

    $1,963.53
    Adding to cart… The item has been added
  • 41 > Drain Plug > 1 10 > All Models > 1 18 > > 1 41 > > 1 6 > > 1
    Image coming soon
    SKU: DNH6268

    Oil Drain Plug H6268

    $15.76
    Adding to cart… The item has been added
  • 19 > Spring Washer > 1 19 > >1
    Image coming soon
    SKU: DNH7834

    Spring Washer H7834

    $21.19
    Adding to cart… The item has been added
  • 31 > Transmission Housing (Reference-See figure 8-1) > 1 18> >1 31 > > 1
    Image coming soon
    SKU: DN35J3

    Transmission Housing, 35J3

    $1,274.04
    Adding to cart… The item has been added
  • 42 > Level Plug > 1
    Image coming soon
    SKU: DNS25 9

    (E) PIPE PLUG (15729)

    $2.41
    Adding to cart… The item has been added
  • 9 > Bearing > 1
    Image coming soon
    SKU: DN500K35

    Bearing (2668)

    $222.69
    Adding to cart… The item has been added
  • 5 > Bearing > 3 5 > >2
    Bearing 500K13
    SKU: DN500K13

    Bearing 500K13

    $43.61
    Adding to cart… The item has been added
  • 6 > Bearing > 1 6 > >1
    Bearing 500K14
    SKU: DN500K14

    Bearing 500K14

    $99.53
    Adding to cart… The item has been added
  • 7 > Bearing > 1 7 > > 1 7 > > 1
    Bearing 500K15
    SKU: DN500K15

    Bearing 500K15

    $97.01
    Adding to cart… The item has been added
