Harrington UP 2 Ton Underhung Push End Trucks
$2,673.96 - $2,900.32
(No reviews yet)
Write a Review
Harrington
Harrington UP 2 Ton Underhung Push End Trucks

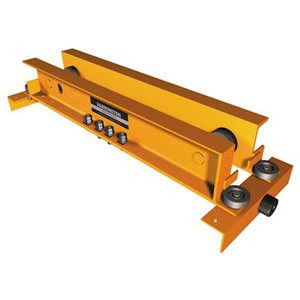

Harrington UP end trucks provide similar benefits to the UM underhung motorized truck, but for push operation. Along with many important features, end truck kits include: two trucks; rubber bumpers; and bridge beam fastener set. All trucks are fully painted. Bridge fabrication prints are also included. As a member of CMAA, Harrington builds UP trucks to meet current industry and regulatory codes.
| Capacity(Tons) | ProductCode | Max.Span(ft.) | WheelDia.(in.) | FlangeRange(in.) | OverallLengthA (in.) | RollerBaseB (in.) | WheelBaseD (in.) | FrameWidthM (in.) | Runway Ctr.Line-Outer EdgeN (in.) | Wheel Running Surf.to Bottom of TruckR (in.) | WidthBeyond SpanX (in.) | Wheel Running Surf.to Upper Part of TruckR (in.) | Weight(lbs/pr) |
| 2 | UP-3-0235 | 35 | 4.33 | 3 - 6 | 60 | 53 | 39 | T + 8.1 | M/2 | 1.5 | 11.3 - T/2 | 6.5 | 448 |
| UP-3-0245 | 45 | 82 | 75 | 61 | 585 |
- Compared to flanged wheel trucks, UP trucks with guide rollers operate easily, particularly in long span or long lift applications.
- Upgrade easily to underhung geared UG or motorized UM models‚ frames are fully machined and prepared for conversion
- Longer or shorter end truck lengths are available‚ consult factory.
- Suitable for use on S or W shaped runway beams.
