TP-3-0535, Harrington TP

Harrington TP 5 Ton Top Running Manual Push End Trucks

Harrington TP — Single Girder Top Running
Manual Push End Trucks

Product Description

TP end trucks provide similar benefits to the top running motorized TM truck, but with push operation. Along with many important features, end truck kits include: two trucks; rubber bumpers; and bridge beam fastener set. All trucks are fully painted. Bridge fabrication prints are also included. As a member of CMAA, Harrington builds TP trucks to meet current industry and regulatory codes.

Product Dimensions and Specifications

Capacity
(Tons)
Product
Code
Max.
Span
(ft.)
Wheel
Dia.
(in.)
Sug. Min.
Runway Rail
(ASCE#)
Overall
Length
A (in.)
Roller
Base
B (in.)
Wheel
Base
D (in.)
Runway Ctr.
Line-Outer Edge
N (in.)
Width
Beyond Span
X (in.)
Top Rail to
Top End Truck
Y (in.)
Weight
(lbs/pr)
5 TP-3-0535 35 6.10 40 62 54 43 3.8 4.7 9.2 420

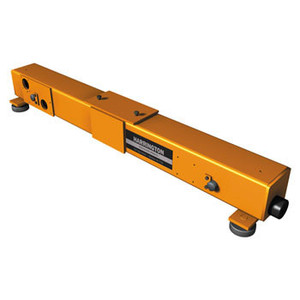

Harrington TP End Truck

Product Features

  • Compared to flanged wheel trucks, TP trucks with guide rollers operate easily, particularly in long span or long lift applications.
  • Longer or shorter end truck lengths are available—consult factory.

Downloads and Other Documents

Freight
This product requires “special handling” and requires a freight surcharge that is included in the cost of the product.
Special Handling - Freight Surcharge
Summary
Base Price: $2,594.00 Customized Price: $3,094.00
  • Special Handling - Freight Surcharge
