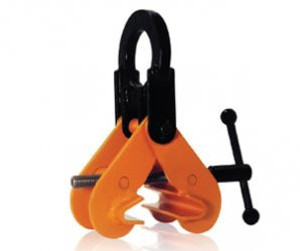

JC Renfroe Model BC 3 Ton Beam Clamp

JC Renfroe Model BC 30,000 lbs. Beam Clamp

SKU:
JCRBC-15.00-A
$3,743.00
(No reviews yet)
The Model BC is a multi-purpose beam clamp suitable for both lifting beams or providing suspension of hoists from beams or girders, thereby eliminating the need for nuts, bolts and shackles. It is intended for use on the American standard or wide-flange beams.
Current Stock:
Adding to cart… The item has been added
Details
Features
Working Load Limit at 0°- 20° Vertical Tons
( in. )		 Flange Width A
( in. )		 Flange Thickness B
( in. )		 C
( in. )		 D
( in. )		 E
( in. )		 F
( in. )		 G
( in. )		 H
( in. )		 Weight
( lbs. )
  1 1/2     3-7 1/2     1/4 - 5/8     11 7/8     11 3/4     3     1/2     5     5 3/4     9 1/2
  3     3 -7 1/2     1/4 - 5/8     11 7/8     12     3     5/8     5 3/16     6 3/4     13 1/2
  5     6 -10     1/2 - 7/8     17     14 7/8     3 1/4     3/4     6 5/16     6 3/4     22 1/2
  10     6 -12     1/2 - 1 1/4     21 1/4     19 1/8     4     1 1/2     7 1/8     9     53
  15     8 - 18     7/8 - 2     32     26 1/2     4 1/2     1 3/4     8 3/8     12     120
  25     18 - 40     2 - 3     61     40 1/2     5     2     15     15     450
