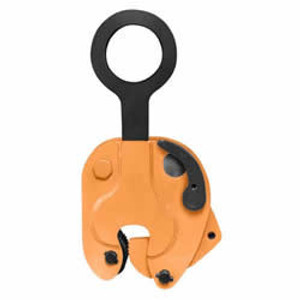

J.C. Renfroe Model TL 20 Ton Lifting Clamp
$7,331.00 - $11,157.00
(No reviews yet)
Write a Review
J.C. Renfroe
J.C. Renfroe Model TL 20 Ton Lifting Clamp
The Model TL is a vertical lifting clamp capable of turning a single plate or member from horizontal to vertical and back to horizontal through the same 90 degree arc.
| Capacity(Tons) | Plate Thickness A (in.) | B (in.) | C(in.) | D (max.)(in.) | E(in.) | F(in.) | G(in.) | H(in.) | J(in.) | Weight(lbs.) |
| 20 | 1/2 - 3 | 8-1/8 | 21-3/4 | 36-11/16 | 5 | 20-11/16 | 8-1/16 | 6 3/16 | 2-3/4 | 415 |
| 2-1/2 - 4-1/2 | 8-1/8 | 21-3/4 | 36-11/16 | 5 | 22-3/16 | 8-1/16 | 6 3/16 | 2-3/4 | 426 | |
| 3 - 5 | 8-1/8 | 21-3/4 | 36-11/16 | 5 | 22-11/16 | 8-1/16 | 6 3/16 | 2-3/4 | 430 | |
| 5 - 7 | 8-1/8 | 21-3/4 | 36-11/16 | 5 | 24-11/16 | 8-1/16 | 6 3/16 | 2-3/4 | 445 |
