J.C. Renfroe Model S 20 Ton Lifting Clamp, Plate Thickness 3/4 - 1-1/2"
$9,496.00
(No reviews yet)
Write a Review
J.C. Renfroe

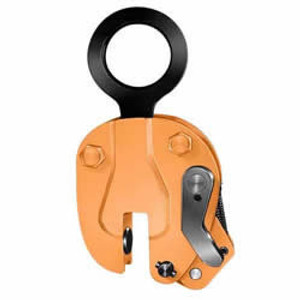

J.C. Renfroe Model S 20 Ton Lifting Clamp, Plate Thickness 3/4 - 1-1/2"
The Model S is a vertical lifting clamp and is an effective tool for construction and erection. It incorporates a 'Lock Open,' 'Lock Closed' feature which facilitates attaching and removing the clamp from the plate.
| Capacity(Tons) | Plate ThicknessA (in.) | B (in.) | C(in.) | D (max.)(in.) | E(in.) | F (max.)(in.) | G(in.) | H(in.) | J(in.) | Weight(lbs.) |
| 2 | 0 - 1 | 3-7/16 | 10 | 17 | 3-5/8 | 8-1/2 | 3-13/16 | 2-3/4 | 3/4 | 32 |
| 3/4 - 1-1/2 | 3-7/16 | 10 | 17 | 3-5/8 | 9 | 3-13/16 | 2-3/4 | 3/4 | 33 | |
| 1-1/4 - 2 | 3-7/16 | 10 | 17 | 3-5/8 | 9-1/2 | 3-13/16 | 2-3/4 | 3/4 | 33 | |
| 1-3/4 - 2-1/2 | 3-7/16 | 10 | 17 | 3-5/8 | 10 | 3-13/16 | 2-3/4 | 3/4 | 36 |
