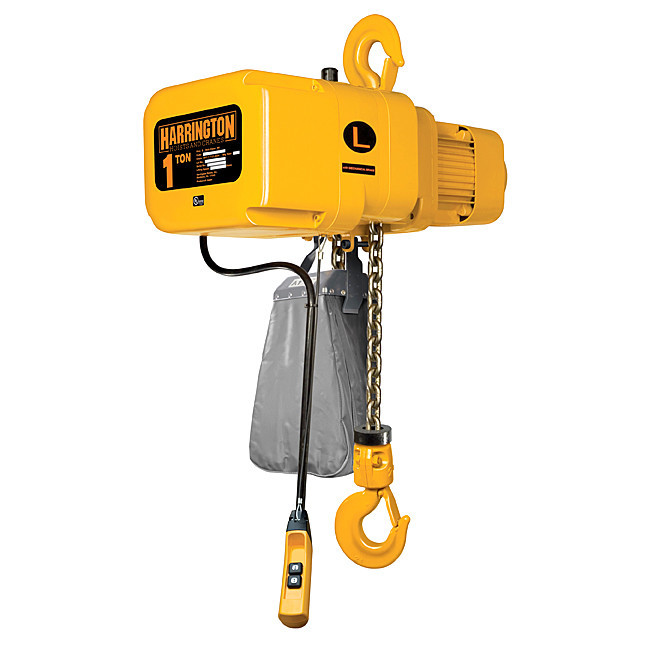

HARRINGTON NER II 1 TON ELECTRIC HOIST, 2.5-14 FPM, VFD with push trolley and steel chain container
Sale

HARRINGTON NER II 1 TON ELECTRIC HOIST WITH PUSH TROLLEY, 2.5-14 FPM, VFD

SKU:
HARNER2P010LD-460-10
$7,265.76 $4,900.00

Very Limited Stock: Only available while supplies last.

The Harrington NER II 1 Ton Electric Chain Hoist (NER2P010LD) features a variable frequency drive (VFD) with lifting speeds from 2.5 to 14 FPM, providing smooth acceleration, precise load control, and efficient operation for a wide range of lifting applications.

This configuration includes a lug mount with push trolley and comes complete with a steel chain container, making it ready for installation and use. This unit is factory configured for 460V and cannot be rewired or converted to another voltage due to its VFD design.

The NER II series is known for its durable construction, reliable electromagnetic braking system, and long service life in demanding industrial environments.

Current Stock:
Adding to cart… The item has been added
Details
Features

Brand

Harrington

Model

NER2P010LD

Capacity (Tons)

1

Duty Cycle

H4

Lifting Speed (fpm)

14/2.5 Dual

Voltage

460V

HP

1.2

Weight, Base Model (lbs)

104
  • Strong, durable, maintenance free, 10 year warranty
  • Electrical fail safe design! A current brake activates the brake coil when the motor draws current. This current brake is coupled in Series (DC through a rectifier) with one of the three legs of power feeding the motor. This method is failsafe, brake will not activate during single phasing or motor burnout.
  • Guardian Smart Brake takes advantage of the current created at motor start-up. This quicker reaction time minimizes drag, thus wear.
  • Guardian Smart Brake uses only 2% of the line voltage, this implies very little resistance.
  • Guardian Smart Brake Coil Design: Current style brake uses large windings but few coils. This is very strong, break-down resistant and durable. Operates with little amp draw and heat buildup.
  • Brake is guaranteed to 2 million cycles
  • Harrington will replace any brake, regardless of wear if it is before 10 years and used in accordance with the Owner's Manual.
