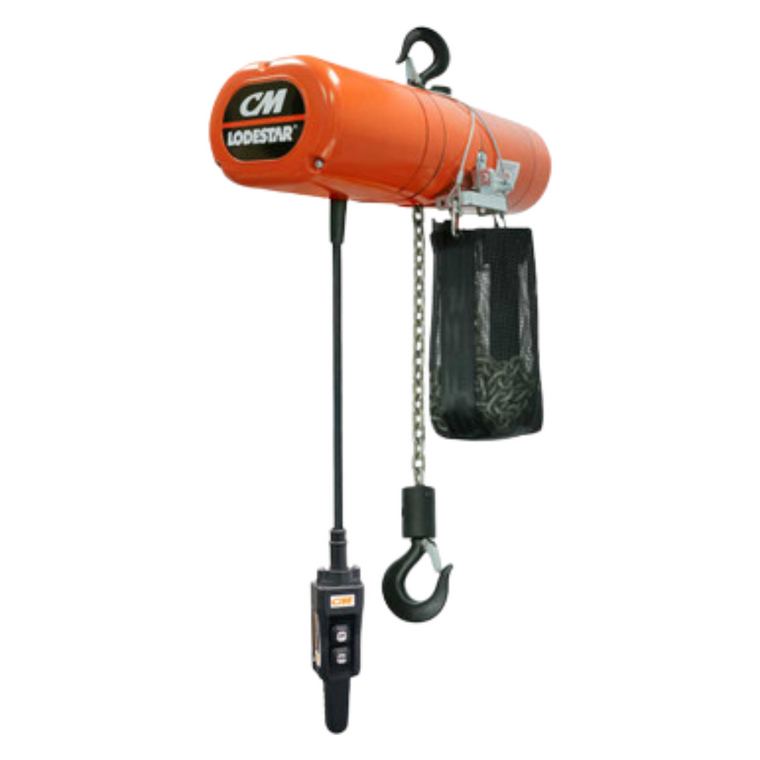

CM Lodestar Model LL 1 Ton Electric Hoist, 32 rpm Single Speed

SKU:
CM3555NH-10-H-230
$5,005.00
Made in the USA
(No reviews yet)
Lodestar electric chain hoists offer power, flexibility and a number of important safety features. All capacities are available in either single speed or two speed models. Heavy duty motors are rated at thirty minutes. Workings are completely enclosed and compact for low headroom. Safety features include Lodestar Protector ®, a friction clutch assembly designed to stop the hoist when overloading occurs. A dual braking system -- heavy duty magnetic and regenerative, plus upper and lower limit switches are additional Lodestar safety features. Snap action control station, Rated NEMA 4, carries only 115 volts and is completely lubricated at the factory. Famous CM Hoistaloy ® load chain comes with standard rigid hook. All CM Lodestar electric chain hoists are made in the USA!
Current Stock:
Adding to cart… The item has been added

Brand

CM Lodestar

Model

LL

Capacity (Tons)

1

Duty Cycle

Heavy Duty (HMI H4)

Lifting Speed (FPM)

32

Motor (HP)

2

Number of Chains

1

Power Supply Voltage

230/460/3/60

Control Voltage

115/1/60

Control Type

Magnetic Contactor, Multi-Speed

Weight, Base Model (lbs)

116

  • Up to 3 ton capacities for heavy-duty industrial applications.
  • Gear train lifetime lubricated with non-oxidizing grease.
  • Precision machined and hardened lift wheel with hardened chain guides for precise chain liftwheel fit.
  • Gearing designed for exceptionally long life and quiet operation.
  • Rugged control station (NEMA 4)
  • Hoist duty motor, standard Protector overload device and standard screw type limit switches.
  • Designed for greater productivity, efficiency and economy.
  • Hardened, forged steel, latch type hooks and Hoistaloy load chain for long, dependable service.
  • Easy to install and maintain.
  • No special tools required to disassemble.
  • High reliability and long life.
  • Lifetime warranty
  • Each hoist thoroughly inspected and tested to over 125% of rated load prior to shipment.
  • Meets ASME B30.16
  • Metric rated
  • Made in U.S.A
