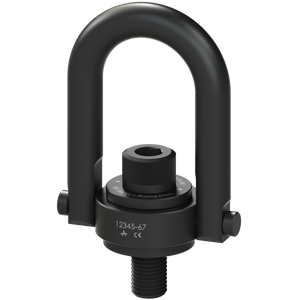

ADB Safety Engineered 4,000 lb. Black Oxide Hoist Ring, 23001
$116.86
The ADB Safety Engineered 4,000 lb. Hoist Ring, part 23001, is a swivel hoist ring with a 5/8-11 mounting thread and a black oxide finish. The bail swivels 360° and pivots 180° under load, letting the ring align with the direction of pull rather than staying in one fixed position, and it holds its full 4,000 lb. rating at any angle from 0° to 90° off the bolt axis.
Key specifications
- Capacity: 4,000 lb.
- Thread size: 5/8-11
- Thread projection: .78″
- Movement: 360° swivel, 180° pivot
- Installation torque: 60 ft-lb., applied dry
Questions about this product? Call (800) 733-2231 and we'll get you connected with someone who can help.
| Capacity(lbs) | A (in.) | B (in.) | C(in.) | D(in.) | E (+/- .12)(in.) | F(in.) | G(in.) | H(in.) | J(in.) | K(in.) | L(in.) | M(in.) | TL*(ft.-lbs.) | Weight(lbs.-oz.) |
| 4,000 | 0.88 | 3.25 | 1.22 | 3/4 | 0.78 | 4.78 | 5/8-11 | 3.52 | 1.99 | 1.50 | 0.16 | 2.18 | 60 | 2 lb. 7 oz |
- Material:High strength 4140 alloy steel
- Design Factor:5:1, Magnetic Particle Inspected Per ASTM E1444, Hoist Rings retain the same rated load from 0 to 90 degrees from the bolt axis, Standard tolerance +- .030 inch unless otherwise specified.
- Finish:Black Oxide Finish for corrosion resistance, Also available in Cadmium, Titanium-Cadmium, Nickel and other plating.
- Range of Movement:Swivel 360°, Pivot 180° Under Load
- 200% Proof Load Tested
