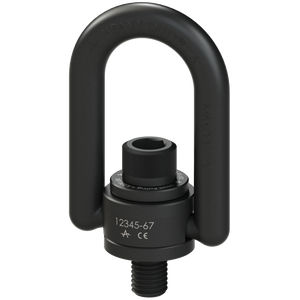

ADB Heavy Duty 8,000 lb. Long Bar Black Oxide Hoist Ring, 33161
$197.15
The ADB Heavy Duty 8,000 lb. Long Bar Hoist Ring, part 33161, is a swivel hoist ring with a 7/8-9 mounting thread and a black oxide finish. The bail swivels 360° and pivots 180° under load, letting the ring align with the direction of pull rather than staying in one fixed position, and it holds its full 8,000 lb. rating at any angle from 0° to 90° off the bolt axis.
Key specifications
- Capacity: 8,000 lb.
- Thread size: 7/8-9
- Thread projection: 1.20″
- Movement: 360° swivel, 180° pivot
- Installation torque: 160 ft-lb., applied dry
Questions about this product? Call (800) 733-2231 and we'll get you connected with someone who can help.
| Capacity(lbs) | A | B | C | D | E +/- .12 | F | G | K | L | M | TL (ft-lbs) | Weight (lbs) |
| 8,000 | 1.50 | 5.10 | 2.05 | 1.00 | 1.20 | 9.00 | 7/8-9 | 2.81 | 0.18 | 4.82 | 160 | 8.06 |
- Material:Forged and machined high strength alloy steel
- Design Factor:Minimum Design Factor = 5:1, Magnetic Particle Inspected Per ASTM E1444, Hoist Rings retain the same rated load from 0 to 90 degrees from the bolt axis
- Range of Movement:Swivel 360°, Pivot 180° Under Load
- Specifications: Meets Military Specification No. MIL-STD 209, Meets ANSI/ASME B30.26
- Finish:Black Oxide Finish for corrosion resistance, * Also available in a wide range of plating – e.g Cadmium, Titanium-Cadmium, Nickel, etc.
- Typical Applications:ADB’s Heavy Duty® Hoist Rings are specified and used in nuclear energy equipment
- 200% Proof Load Tested
