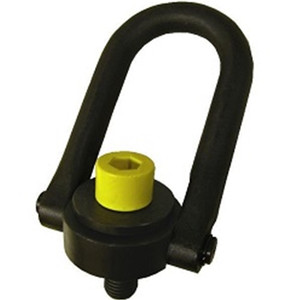

ACTEK 2,000 lb. Safety Swivel Hoist Ring, 46000
$145.86
The ACTEK 2,000 lb. Safety Swivel Hoist Ring, part 46000, is a heat treated alloy steel swivel hoist ring with a 7/16-14 mounting thread and a black oxide finish. It swivels 360° and pivots 180°, letting the ring align with the direction of pull, and it holds 100% of its rated load from 0° to 90° off the bolt axis.
Key specifications
- Capacity: 2,000 lb.
- Thread size: 7/16-14
- Thread projection: 0.78″
- Movement: 360° swivel, 180° pivot
- Installation torque: 22 ft-lb., applied dry
- Weight: 2.6 lb.
Fatigue rated: ACTEK fatigue tests this line to 20,000 cycles at 1-1/2 times the rated load, which matters on a lifting point that gets cycled daily rather than used once.
Questions about this product? Call (800) 733-2231 and we'll get you connected with someone who can help.
| Manufacturer Part Number | Capacity (lbs) | Thread Size(in) | A(in) | C(in) | D(in) | E(in) | B(in) | F(in) | G(in) | H(in) | Torque (ft-lbs) |
Weight (lbs) |
| 46000 | 2,000 | 7/16-14 | 0.88 | 1.22 | 3/4 | 0.78 | 2.37 | 4.78 | 3.52 | 1.99 | 22 | 2.6 |
- 200% Proof-Load Tested with Serial Number for Traceability
- Swivels 360 deg - Pivots 180 deg
- Material: Alloy Steel
- Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
- Safety Factor: 5:1
- Magnetic Particle Inspected
- Certified Heat Treatment
- Rated at 100% from 0 deg -90 deg
- Fatigue Tested to 20,000 Cycles at 1-1/2x the Rated Load
- Meets or Exceeds the Requirements of ASME 830.26
- Thread: Longer Thread Projection and Fine Threads Available
- Conforms to CE
