Tractel Dynasafe ® HF 32/1/B, 1 trip points - Universal Load Limiter

SKU:
TRAC38678
$2,320.10
(No reviews yet)
Established in 1932, Ace industries have supplied replacement, maintenance, and repair parts from original equipment manufacturers (OEM) for over 90 years. Our parts department has extensive knowledge of all Tractel Systems. At Ace Industries, we stock over 1000s of hoist parts and accessories that can be ready to ship the next day. We can assist in finding the right new in-stock part to fit your needs, whether the hoist is current or discontinued. Ace industries also sell brand-new electric chain, air powered, wire rope, and manual hoists; when it is time to replace your unit, contact an Ace Industries Professional at 800-733-2231 or visit our website aceindustries.com.
Current Stock:
Adding to cart… The item has been added

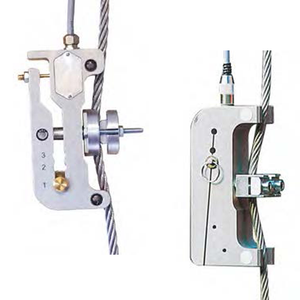

Tractel® universal load limiters HF 31 and HF 32, are clamp-on models designed for overhead traveling bridge cranes and feature improved durability and reliability. Dynasafe® is specifically designed to manage one or two safety thresholds on small or medium capacity overhead travelling cranes.

HF 31 FEATURES

  • Repeatability: +/- 1% of nominal capacity
  • Capacity range from 450 to 6,400 lbs., per part of hoisting line
  • Range of wire rope sizes from 3/16 to 5/8 in.
  • Operating temperature from -22 to 176oF
  • Operates on 220 V consuming 4 A, maximum

HF 32 A-SERIES STANDARD FEATURES

  • Repeatability: +/- 1% of nominal capacity
  • Capacity range from 600 to 24,000 lbs.
  • Wire rope sizes from 11/16 to 1 3/8 in.
  • Operating temperature from -22 to 176oF
  • Maximum switching power 220 V/5 A

HF 32 B-SERIES HIGH PRECISION FEATURES

  • Repeatability: +/- 0.5% of nominal capacity
  • Capacity range from 200 to 12,000 lbs.
  • Wire rope sizes from 11/16 to 1 in.
  • Operating temperature from -22 to 176oF
  • Switching power up to 12 V DC
