Suncor - 5/16" Bolt Chain Shackle 316 stainless with Oversize Bolt
$14.91
(No reviews yet)
Write a Review
Suncor Stainless

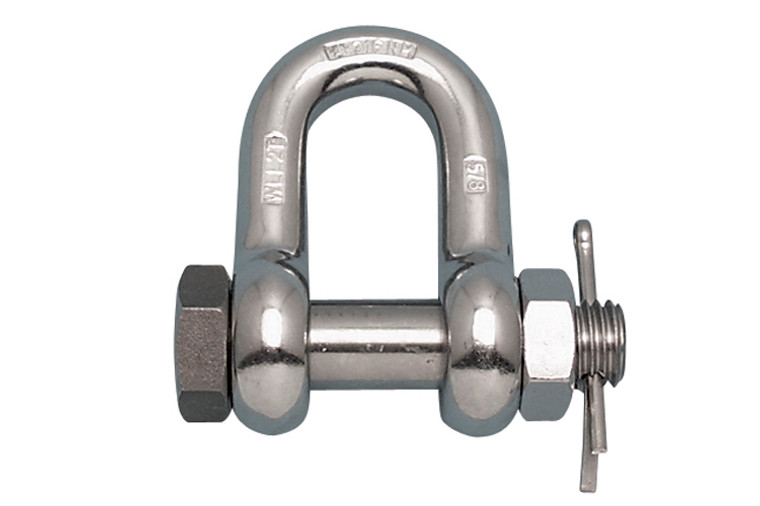

Suncor - 5/16" Bolt Chain Shackle 316 stainless with Oversize Bolt
This Bolt Chain Shackle features an oversize bolt and is made from 316-NM stainless steel for maximum corrosion resistance. This stainless steel shackle is available in multiple sizes, making it ideal for many industrial and marine applications.
| Model Number | A - Size(in.) | B (in.) | C (in.) | D (in.) | X (in.) | Y (in.) | Z (in.) | WLL (lbs.) | Weight(lbs.) |
| S0115-SA08 | 5/16 | 0.38 | 0.52 | 1.02 | 1.80 | 1.85 | 0.72 | 1,300 | 0.16 |
- Specifications: Fed. Spec. RR-C-271, Type IVB, Class 3 | ASME B30.26-2010 | MIL-DTL-32655
