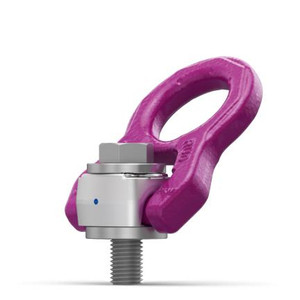

Rud 2.5 Ton Boltable Swivel Hoist Ring (ACP-TURNADO 2.5t M16)
$188.25
The ACP-TURNADO 2.5 Ton M16 Boltable Swivel Hook Ring is engineered for safe, efficient, and versatile lifting. With a 2.5-ton working load limit, it bolts securely into place and automatically aligns with the load to reduce side loading, prevent kinking, and improve overall handling safety.
- Smoother, safer lifts: Exterior spring mechanism prevents the bail from locking under transverse load.
- Fluid load alignment: Swivel joint in the lifting axis ensures smooth movement and proper positioning.
- Flexible handling: Rotates 360° for full directional freedom.
- Precise positioning: Pivots 180° to handle complex or tight lift situations.
- Streamlined inspections: Integrated RFID transponder makes recordkeeping simple.
- Proven reliability: Safety factors of 4:1 and 5:1 for dependable performance.
- Standards compliant: Meets and exceeds ASME B30.26 requirements for lifting devices.
Need a different capacity or thread size? Explore the full catalog of available Rud products. To order from this catalog, just give us a call at (800) 733-2231.
| Capacity | 2.5 tons |
| Lifting Point Depth | 14 mm |
| Lifting Point Thickness | 14 mm |
| Lifting Point Inner Dimension | 50 mm |
| Base Width | 40 mm |
| Threaded Rod Length | 22 mm |
| Base Height | 36 mm |
| Maximum Threaded Rod Length | 68 mm |
| Threaded Rod Head Width | 24 mm |
| Lifting Point Width | 76 mm |
| Base Height + Rod Length | 58 mm |
| Thread Size | M16 |
| Key Width | 10 mm |
| Head Room | 107 mm |
