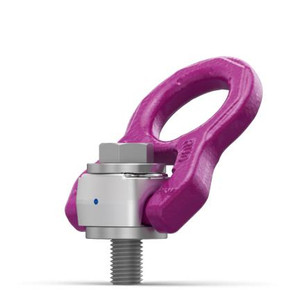

Rud 12.5 Ton Boltable Swivel Hoist Ring (ACP-TURNADO MAX 12.5t M36)
$761.25
The ACP-TURNADO MAX 12.5 Ton M36 Boltable Swivel Hoist Ring is designed for heavy-duty lifting where safety and precision are essential. With a 12.5-ton working load limit (27,558 lbs), it bolts securely into place and automatically aligns with the load to prevent side loading, reduce kinking, and ensure safer handling.
- Smoother, safer lifts: Innovative internal spring mechanism keeps the bail from locking under transverse loads for consistent performance.
- Fluid load alignment: Swivel joint in the lifting axis allows proper positioning and reduces stress on the load.
- Flexible handling: Full 360° rotation and 180° pivoting make it easier to handle heavy lifts from any angle.
- Clear safety visibility: Deflector disc includes angle markings, WLL ratings in tons and pounds, torque specs, and safety factors for quick reference on the job site.
| Capacity | 12.5 tons |
| Lifting Point Opening Height | 106 mm |
| Lifting Point Depth | 32 mm |
| Lifting Point Thickness | 32 mm |
| Lifting Point Inner Dimension | 82 mm |
| Base Width | 70 mm |
| Threaded Rod Length | 45 mm |
| Base Height | 60 mm |
| Maximum Threaded Rod Length | 128 mm |
| Threaded Rod Head Width | 55 mm |
| Lifting Point Width | 168 mm |
| Base Height + Rod Length | 105 mm |
| Thread Size | M36 |
| Key Width | 22 mm |
| Head Room | 189 mm |
