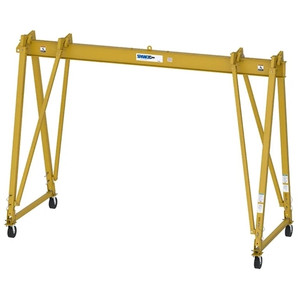

Spanco T-Series - 3 Ton Gantry Crane - Adjustable Height, Steel Legs w/Aluminum I-Beam
$7,290.90 - $8,678.70
Spanco T-Series 1 Ton Gantry Crane - Adjustable Height, Steel Legs w/Aluminum I-Beam
$6,228.90
Spanco T-Series Gantry Cranes offer three-way adjustability for span, height, and tread. Their adjustment flexibility allows use on multi-level floors, as well as passage through doorways, aisles, and under mezzanines or other overhead obstacles.
| Overall Span B1 (ft.) |
Model Number |
Max. Span B2 (ft.) |
Clear Span C (ft.) |
Height Under Boom (HUB) D1 (ft.) |
Overall Height (HUB) D2 (ft.) |
Flange Width E2 (in.) |
Beam Size E1 |
Caster Frame Spread F (ft.) |
Caster Dia. G (in.) |
Max. Leg Clear H (in.) |
Weight (lbs.) |
|||
| Min. | Max. | Min. | Max. | Min. | Max. | |||||||||
| 10 | 1T109SA | 9' 1" | 5' 2" | 6' 2" | 9' 6" | 7' 0" | 10' 4" | ALU6X4.3# | 3-3/8" | 4' 7" | 7' 1" | 8" | 10" | 808 |
| 1T1015SA | 5' 1" | 9' 7" | 14' 9" | 10' 7" | 15' 9" | ALU8X6.35# | 4" | 6' 2" | 10' 2" | 11" | 1028 | |||
| 1T1021SA | 5' 0" | 14' 0" | 21' 10" | 14' 10" | 21' 10" | 7' 7" | 13' 11" | 11" | 1343 | |||||
| 15 | 1T159SA | 14' 1" | 10' 4" | 5' 10" | 9' 2" | 7' 0" | 10' 4" | ALU10X8.76# | 4-5/8" | 4' 7" | 7' 1" | 8" | 13" | 865 |
| 1T1515SA | 10' 2" | 9' 5" | 14' 7" | 10' 7" | 15' 9" | 6' 2" | 10' 2" | 13" | 1059 | |||||
| 1T1521SA | 10' 1" | 13' 6" | 20' 6" | 14' 10" | 21' 10" | ALU12X10.90# | 5" | 7' 7" | 13' 11" | 14" | 1375 | |||
- Superior Stability: Engineered design leaves I-beam free to pivot as it self-centers over the load. The true A-frame design helps to maintain greater stability, virtually eliminating the swaying motion common to other 3-way adjustable gantry designs. Main legs, brace legs, and caster frames are made of heavy-gauge, square tubing with zinc-plated hardware.
- Adjustable Span: Exclusive Spanloc design securely holds the I-beam during adjustments and when set.
- Cantilever Options: Deliver materials through end of gantry; cantilever up to 25 percent of the rated capacity (4-foot max.) using a counterweight.
- Adjustable Height: Adjust in 6-inch intervals using push/pull pins on main legs.
- Adjustable Tread: A cable assembly is bolted inside the caster frame tubes to prevent overspreading.
- Heavy-Duty Casters: Four position, swivel-lock casters with moldon polyurethane wheels protect floors from damage.
