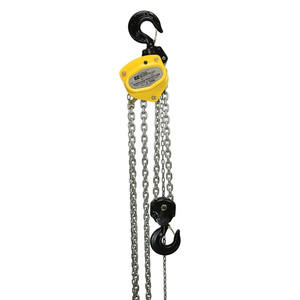

OZ Premium 30 Ton Hand Chain Hoist w/Overload Protection

(No reviews yet)
The OZ Premium Hand Chain Hoist comes with standard overload protection that is set at approximately 150% of the rated load. This feature prevents the hoist from being severely overloaded causing damage to the hoist. OZ hand chain hoist can be used for lifting or pulling which makes it a more versatile tool. Double reduction gearing provides easy operation with minimal lifting effort. The unique hand wheel design feature enables the hand chain to successfully feed directly into the wheel sprocket from many directions and angles. This enables the operator can use the chainfall while standing to the side of, or even above the load without fear of the hand chain jamming. Long-lasting powder coat finish on the all-steel construction ensures durable protection while providing a long and dependable service life in harsh environments.
Current Stock:
Adding to cart… The item has been added
Brand OZ
Model Premium
Model Number OZ300-CHOP
Capacity (tons) 30
Effort to Lift (lbs) 90 x 2
Standard Lift (in) 10
Number of Chain(s) 12
Weight, Base Model (lbs) 360
  • Weston-Style Brake System - An enclosed and protected Weston-Style load brake stays clean and dry during the entire load operation. Also equipped with a unique twin pawl design for additional reliability.
  • Enclosed Gearing - Gears are protected from contamination and debris.
  • Sealed Roller Bearing - This feature provides smooth, controlled operation of the gears and shafts. This ensures maintenance-free lubrication.
  • Forged Hooks - Forged alloy steel hooks swivel 360deg. for easier attachment and positioning.
  • Thrust Bearing on Lower Hook - Allows easy rotation of load while suspended and prevents load chain twisting.
  • Cast steel safety latches - Heavy-duty, cast-steel safety latch has a bolt-and-lock nut connection. This feature simplifies changing latches in the field.
  • 100% load tested Zinc-Plated Chain - Provides a durable non-oily finish.
  • Stainless Steel Riveted ID Tags - Made from stainless steel the ID tag is corrosion resistant.
  • Standards - CE, ASME B30.16, AS1418.2
