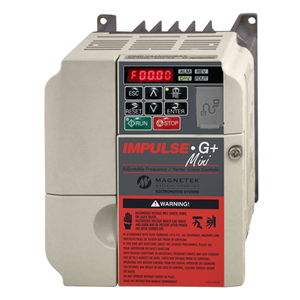

Magnetek IMPULSE® G+ Mini Adjustable Frequency Crane Control, 460V/ 3 HP/ 4.8 FLA, VFD

Magnetek IMPULSE ® G+ Mini Adjustable Frequency Crane Control, 460V/ 3 HP/ 4.8 FLA, VFD

SKU:
ELM4004G+M
$700.86 - $975.68
The low horsepower Magnetek IMPULSE ® G+ Mini is our easiest to program drive to date, with user-friendly standard programming for basic applications and advanced programming capability for high-performance environments. The IMPULSE G+ Mini is designed with an expanded horsepower range 1/2 to 20 HP. All this, plus assured reliability and lower cost make the IMPULSE G+ Mini Adjustable Frequency Crane Control the product of choice for your overhead material handling needs.
Current Stock:
Adding to cart… The item has been added
Details
Features
Manufacturer Magnetek
Model IMPULSE G+ Mini
Model # 4004-G+M
Voltage 460V
Full Load Amps 4.8
Rated HP 3
Weight (lbs) 3.7
Total Heat Loss (2.0 kHz) 57.4
  • LOAD CHECK‚ This built-in feature continuously detects hoist overload conditions throughout the frequency range, halting upward motion and only allowing the load to be lowered. It continuously monitors the hook load, both during acceleration and constant speed, eliminating the need for load cells in most applications.
  • Removable terminal block with parameter backup
  • 40:1 Speed range
  • Three Speed Control Methods‚ up to 5 distinct speeds, infinitely variable, and stepless analog speed reference.
  • Motor Thermal Overload Protection‚ reduces possibility of motor damage
  • Quick Stop‚ reduces possibility of crane collision
  • UL recognized Electronic Thermal Overload
  • X-Press Programming‚ allows programming initial setup within seconds
  • Reverse Plug Simulation‚ allows operator to smoothly and quickly stop and change directions without setting brake
