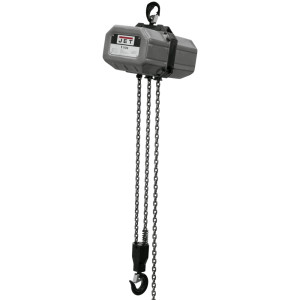

JET SSC 5 Ton Electric Chain Hoist, Single Phase

(No reviews yet)
Designed for commercial and industrial applications the JET Single Speed Electric Hoists are easy to install, inspect, and maintain. The SS Hoist is equipped with a heavy-duty ventilated motor available in a range of HP from 7/8 to 2-1/7. Gear trains feature lifetime lubrication eliminating the need for oil changes. All models come standard with slip clutch overload protection, chain containers and drop forged, heat treated hooks that swivel 360 degrees for easy rigging. Single phase units feature a solid-state starting switch that eliminates the mechanical centrifugal mechanism and reversing switch. Quick connect wiring for power and push button controls allow for quick set-up while the DC electro-magnetic brake secures loads even if power is interrupted. For added convenience and versatility equip the SS Series Electric Hoists with a JET ET series Electric Trolley or JET PT Push Trolley.
Current Stock:
Adding to cart… The item has been added
Brand JET®
Model SSC Series
Model # 5SS-1C
Capacity (Ton) 5
Lifting Speed 4.9 - fpm
Motor (HP) 1-3/4
Duty Cycle Rating H3
Duty Cycle 25 %
Voltage 115V / 230V
Weight, Base Model (lbs.) 236 lbs.
  • JET¬Æ SSC Series - Designed for commercial and industrial applications. Quick-connect wiring for power and push button control.
  • Capacities & Lifts - Rated loads from 1 / 2 to 5 ton, with a 10 foot standard lift. Other lifts available.
  • Motor - Heavy duty motor with 7 / 8 to 2 ‚Äì 1 / 7 horsepower. Motor is available in single or three phase models. Heavy-duty ventilated motor with thermal overload protection in single phase model or reverse phase protection for three phase models
  • Brake System - Reliable DC electromagnetic brake holds the load even if power is interrupted.
  • Frame Design - Totally enclosed steel plate construction with a durable powder coat finish
  • Gearing - . Gear train features lifetime lubrication, so no oil changes are required.
  • Safety - Upper and lower limit switches to prevent overtravel.
  • Standard - Heavy-duty Chain Container.
  • Warranty - JET RED Assurance 2-year Manufactures Warranty.
