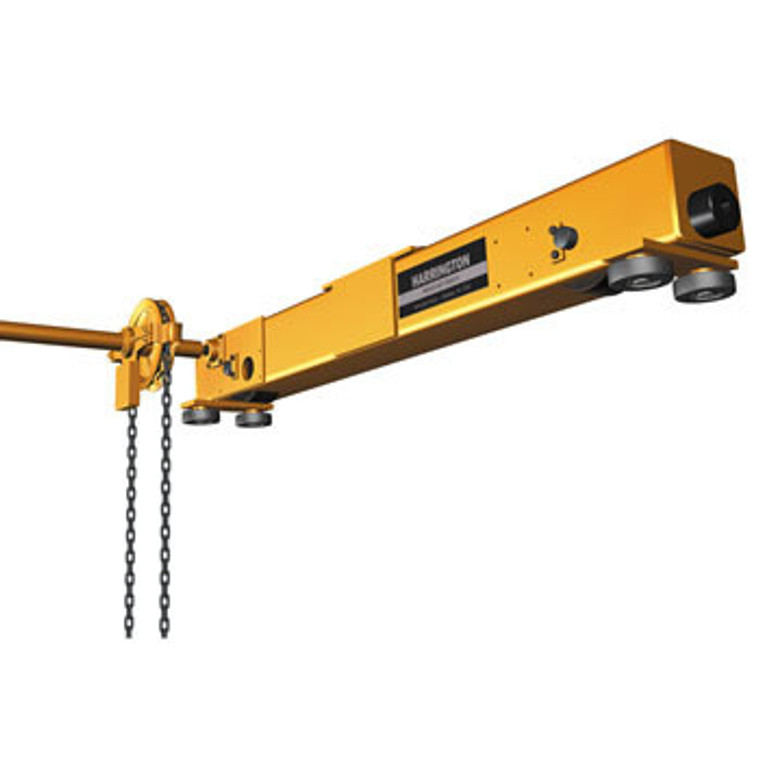

Harrington TG 1 Ton Top Running Geared End Trucks
$4,041.62
(No reviews yet)
Write a Review
Harrington
Harrington TG 1 Ton Top Running Geared End Trucks
TG end trucks provide similar benefits to the TM truck, but with geared drive. Along with many important
features, end truck kits include: two trucks; hand wheel drive; shaft couplers; appropriate drive shaft
bearing supports based on span; rubber bumpers; and bridge beam fastener set. All trucks are fully
painted. Bridge fabrication prints are also included. As a member of Crane Manufacturers Association
of America (CMAA), Harrington builds TG trucks to meet current industry and regulatory codes.
| Capacity (Tons) | ProductCode | Max.Span (ft.) | WheelDia.(in.) | Sug. Min.Runway Rail(ASCE#) | OverallLengthA (in.) | RollerBaseB (in.) | WheelBaseD (in.) | Hand WheelOffsetJ (in.) | Runway Ctr.Line-Outer EdgeN (in.) | WidthBeyond SpanX (in.) | Top Rail toTop End TruckY (in.) | Weight(lbs/pr) |
| 1 | TG-3-0135 | 35 | 3.74 | 30 | 61 | 53 | 43 | 9.7 | 2.1 | 4.6 | 7.1 | 264 |
| TG-3-0150 | 50 | 98 | 90 | 80 | 360 |
- Versatile design allows hand chain wheel placement anywhere on drive shaft based on application needs.
- Upgrade easily to TM top running motorized design by simply adding drives and reducers.
- Ideal for precision spotting requirements where motorized operation is not necessary.
- Longer or shorter end truck lengths are available.
