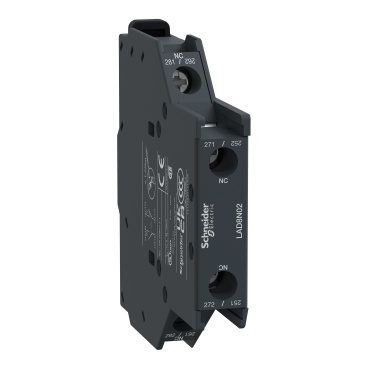

Contactor Auxiliary Contact Block, LAD8N02
$20.90
This auxiliary contact block mounts directly onto a TeSys D contactor to add additional control-circuit contacts for interlocking and signaling. Model LAD8N02 is manufactured by Schneider Electric.
| Product Type | Auxiliary contact block | |
| Short Name | LAD8N02 | |
| Range Compatibility | TeSys Deca LC1D09...95 AC coil TeSys Deca LC1D115/150 TeSys Deca LC1D40A...80A AC Coil TeSys Deca CAD AC coil TeSys F LC1F | |
| Mounting Location | Side | |
| Pole Contact Composition | 0 NO + 2 NC | |
| Contacts Operation | Instantaneous | |
| [Ue] Rated Operational Voltage | 690 V AC 25...400 Hz | |
| [Ie] Rated Operational Current | 6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13 | |
| [Ui] Rated Insulation Voltage | 690 V IEC 60947-5-1 600 V UL 600 V CSA | |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 140 °F (60 °C)) | |
| Standards | EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ | |
| Product Certifications | CB Scheme UL CSA CCC EAC UKCA |
