Coffing Turnover 1/4 Ton Hoist 16 fpm, Three Phase
$6,435.80
(No reviews yet)
Write a Review
Coffing
Coffing Turnover 1/4 Ton Hoist 16 fpm, Three Phase

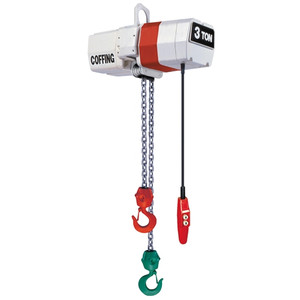

COFFING EC Turnover Models - Specially modified EC Hoist designed for machining, assembly, or repair applications which require complete rotation and/or precise positioning of large, non-symmetrical work pieces.
All Coffing EC Electric chain hoists are made in the USA and are the Industry Leader in Strength & Dependability!
| Brand | COFFING |
| Model | EC0516 |
| Capacity (Ton) | 1 / 4 |
| Lift (ft.) | 15 |
| Lifting Speed (FPM) | 16 |
| Motor (HP) | 1 / 4 |
| Number of Chains | 1 (Two Hooks) |
| Power Supply Voltage | 230/460/3/60 |
| Control Type | Magnetic Contactor, Single Speed |
| Weight, Base Model (lbs.) | 120 lbs. |
- Coffing EC Models - High performance hoists engineered for heavy duty industrial service. Designed for safety, the EC incorporates mechanical load brake, motor brake, and overload clutch as standard.
- Capacities & Lifts - Rated loads from 1/4 to 4 Tons, with 15 stroke. Other lifts available by special order, contact Ace customer service team for details.
- Push Button - Drop is 9-feet
- Voltage & Motor Options - 230v or 460v- three phase. 60 hertz standard
- Suspension Options - Rigid lug mount only. Allows attachment to load hook of another hoist for vertical lifting.
- Small Frame Design - Features housings of cast aluminum alloy construction for minimum weight. Engineered and designed for use with motors up to 1 HP.
- Two Load Hooks - Color coded load hooks with corresponding push button for operator convenience.
- Made in the USA
- LIFETIME WARRANTY
