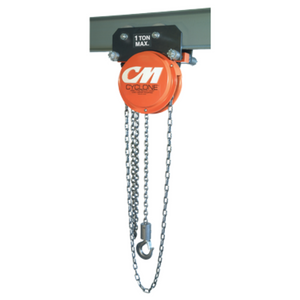

CM Cyclone 12 Ton Integrated Trolley Hand Chain Hoist

Made in the USA
(No reviews yet)
The CM Cyclone Integrated Trolley Hoist combines superior engineering, efficiency, and durability. Plain or geared integrated trolley mount is ideal for applications requiring movable hoists. Quality and performance as the Cyclone in a compact integral trolley mount.
Current Stock:
Adding to cart… The item has been added
Manufacturer Columbus McKinnon
Model Cyclone Integrated Trolley Hoist
Capacity (ton) 12
Lift (ft.) 10
Reeving 6
Chain Pull Force (lbs.) 95
Control Type Manual
Flange Width Range (in.) 5-1/2 - 8
Base Model Weight (lbs.) 1068
  • Rugged steel loadbars connected directly to hoist frame
  • Reduced headroom, side clearances and end approach for easy maneuvering of heavy loads in tight places
  • Standard Load Limiter automatic overload protection
  • Plain and geared trolley mounts in capacities from 1/4 to 12 tons
  • Universal tread trolley wheels for operation on sloped or flat flanged beams
  • Standard hand chain drop 2 feet less than lift (example: 10 foot lift hoist has 8 foot hand chain drop)
  • Lifetime warranty
  • Metric rated
  • Made in U.S.A
