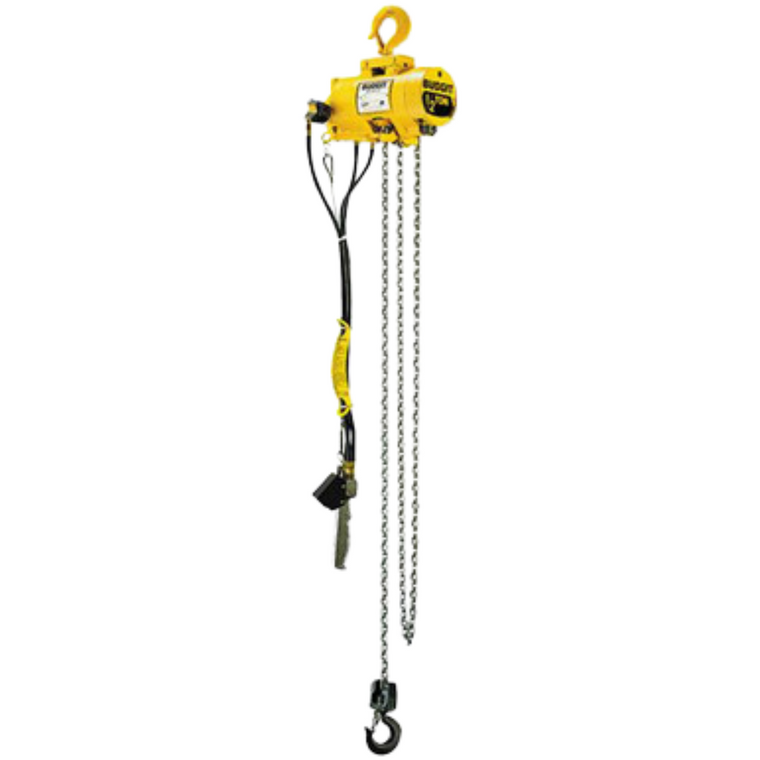

Budgit 2200 1/2 Ton Air hoist 45 fpm, Pendant Controlled - 2216
$4,651.50
(No reviews yet)
Write a Review
Budgit
Budgit 2200 1/2 Ton Air hoist 45 fpm, Pendant Controlled - 2216
These precision-built chain hoists are available in 1/4, 1/2, and 1-ton capacities, with either pull cord or pendant throttle control. A variety of options, including link load chains, hook suspension for easy portability or lug suspension for close head-room arrangements, and spark-resistant link chain models make the Series 2200 adaptable to almost any application.
| Brand | Budgit |
| Model | Series 2200 |
| Capacity (Tons) | 1/2 |
| Lifting Speed (FPM) | 45 |
| Air Consumption | 48 SCFM at 90 PSI |
| Control | PENDANT THROTTLE CONTROL |
| Number of Chains | 1 |
| Weight, Base Model (lbs) | 46 |
- Pull cord control provides a lightweight, economical hoist for accurate control of loads
- Pendant throttle control hoists offer ergonomic one-handed controls, for ease of operation
- Inlet air swivel with built-in strainer provides free hoist movement
- Aluminum frame and end cover contributes to the lightweight, easily portable, and rugged design
- Heavy duty shoe type brake is a proven design for stopping and holding loads in heavy duty applications
- External adjustment screws for decreased lift and lower speeds
- External brake adjustment
- Limit stops prevent over-travel in upper and lowering directions
- Equa-torque gearing of alloy steel, heat treated spur gears is accurately machined to provide a close meshed, compact gear reduction
- Eight-vane motor provides high torque, smooth starting and excellent control
- Tapped exhaust port 1/2 NPTF. for CLEAN applications or to add a supplemental muffler in addition to the built-in muffler for even quieter operation
